Product Description

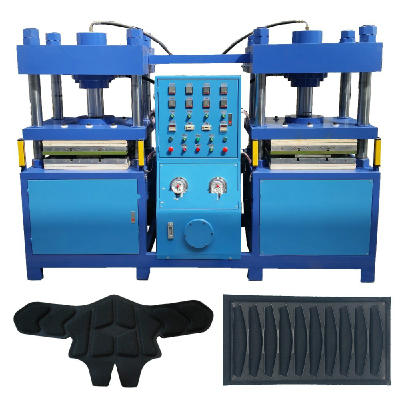

 1, 4-column press way from button to top, face width of 400 mm, 500 mm long,
2,The  Hydraulic press main body height of 1700 mm, 850 mm wide, length is 3600 mm
3, The mechanical points 4 head operation work table, can single work each of  independent operation work table, hot pressing time arbitrary adjustable, mechanical/automatic operation at any convertible
4, Oil cylinder stroke maximum 150 mm.200 mm maximum opening of limit device, according to the specific of mould used to adjust the mechanical stroke.
5, The combination pressure system used high and low voltage large flow pump maximum pressure is 300KN  hydraulic press plunger cylinder hydraulic cylinder with a diameter of 180 mm,(the other side we can make it according to customer)
6, Power source 380 v power 5.5 kW hydraulic motor control circuit adopt PLC with touch screen Operation simple and convenient Material weight 12000 kg
7, Each of table have a monitoring pressure gauge Equipped with pressure relay regulating mechanical automatic pressure maintaining, the holding time of arbitrary adjustable.
8, The mechanical oil pump start rising, falling for mechanical automatic, mechanical clamping speed of 30 mm/SEC
9, The machinery for cold press, coupled with aluminum alloy cooling plate (best used with cold water machine)
